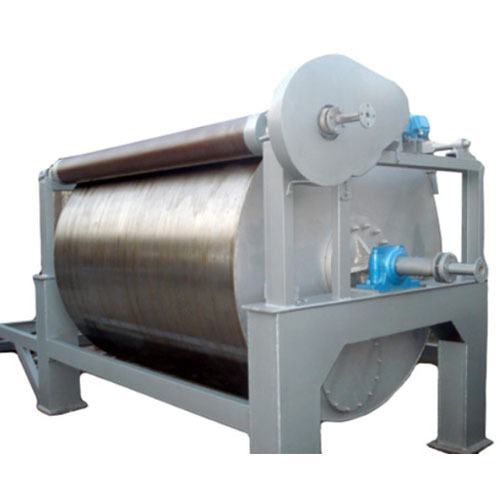

DRUM TYPE FLAKING MACHINE Description

Drum flaker is a kind of rotating continuous drying equipment with internal cooling and conducting. Certain thickness of materials film attaches the drum from materials tank at the bottom. low temperature is transferred to the external wall and conduct to the materials film. So that it evaporates the moisture in the materials film so as to solidify the materials.

Dried products are scrapped off the drum by the blade fixed on the surface of the drum, then fall down to the spiral conveyor under the blade. The conveyor collects the products and output them.

It can be universally used in chemical industry and pharmacy.

2. Applied material for key parts and test standards


—— The rotary drum flaker has parts in contact with raw material is 304 stainless steel,
         Machine frame support made of carbon steel hot spray galvanized.

The drum will be done the water pressure test under 0.3MPA after finishing the manufacturing.

The data after assembling: radial run out of drum ≤0.1mm, axial transmission ± 0.2mm.

The contact between scraper and drum should be even, the contact line will be not less than 80% of the whole length.There should be no bumping and abnormal noise when running.
         The outside surface of the drum should be treated by polishing.

3. DRUM TYPE FLAKING MACHINE Specification
