Ribbon blender for powder mixing

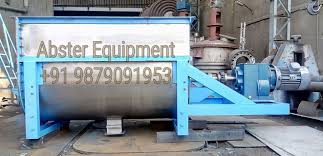

The Horizontal ribbon blender for powder mixing consists of a U-shaped container, a ribbon stirring blade and a transmission component; the U-shaped long body cylinder structure ensures a small resistance movement of the mixed material (powder, semi-fluid) in the cylinder. The positive and negative rotating screws are mounted on the same horizontal axis to form a low-dynamic and high-efficiency mixed environment.

The ribbon-shaped blades are generally made of two or three layers. The outer spiral gathers the materials from both sides to the center, and the inner spiral will The material is transported from the center to the sides.

Can make the material form more eddy currents in the flow, speed up the mixing speed and improve the mixing uniformity.

drive with the pulley to drive the cycloid reducer, compared with the large torque of the gear reducer, the belt drive Elastic connection has the advantage of protecting the drive components during overloading


Technical data:

Model Capacity ( L ) Power ( Kw) Speed (Rpm) Weight (Kg)
RB-50 50 3 60 400
RB-100 100 4 60 600
RB-200 200 7.5 41 800
RB-300 300 7.5 41 1500
RB-500 500 11 33 1800
RB-1000 1000 18.5 26 2000
RB-1500 1500 22 26 2500
RB-2000 2000 30 20 3200
RB-3000 3000 37 20 6000
RB-5000 5000 55 20 9500
RB-12000 12000 110 18 15000


Abster Equipment MIXER provide you with trusted quality and good after sale service. If you have any inquiry ,please check our website for more details .

Ribbon Mixer is primarily designed for use with dry materials, although gas and liquid streams can also be added. A wide variety of configurations, for either batch or continuous mixing, are available with sizes ranging from 100-20000 liter working capacity.

Application specific rotor mixing element design allows shorter batch cycle times due to increased mixing efficiency. We can customize the design of the Ribbon Mixer to meet your specific mixing requirements. Mixing vessels can be standard U-shape or cylindrical depending on internal pressure or vacuum requirements.

Ribbon Blender Working Principle:

Ribbon Blender for Powder Mixing

Ribbon mixer consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle.

while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly.
